Products Description
High-Torque Rotary Head: Delivers up to 9500N·m (KS450) and 10000N·m (KS500) of torque with a wide speed range (30-135 rpm) to handle the toughest rock formations.
Premium Engine Options: Choose the reliable Yuchai turbocharged engine (110kW for KS450, 118kW for KS500) or upgrade to the Cummins turbocharged engine for international projects.
Italian Imported Hydraulic Pump (KS500): Ensures precise, efficient power distribution with exceptional durability, reducing maintenance costs over the machine's lifetime.
Independent Dual Cooling System: Hydraulic oil temperature cooling combined with traditional air cooling dramatically extends engine and hydraulic component life, crucial for long shifts in remote locations.
Composite Boom Design: Optimized for high lifting capacity (25-26 tons) with a compact profile, featuring dual lifting cylinders and integrated limit devices for maximum safety.
Thickened Hose Protection: All hydraulic hoses are fitted with heavy-duty protective sleeves for extended service life in abrasive environments.
Drilling depth up to 500 meters
Hole diameter 140-350mm
6.6 meters feed stroke reduces pipe changing frequency
Working air pressure 1.7-3.5MPa
Air consumption 17-42 m³/min

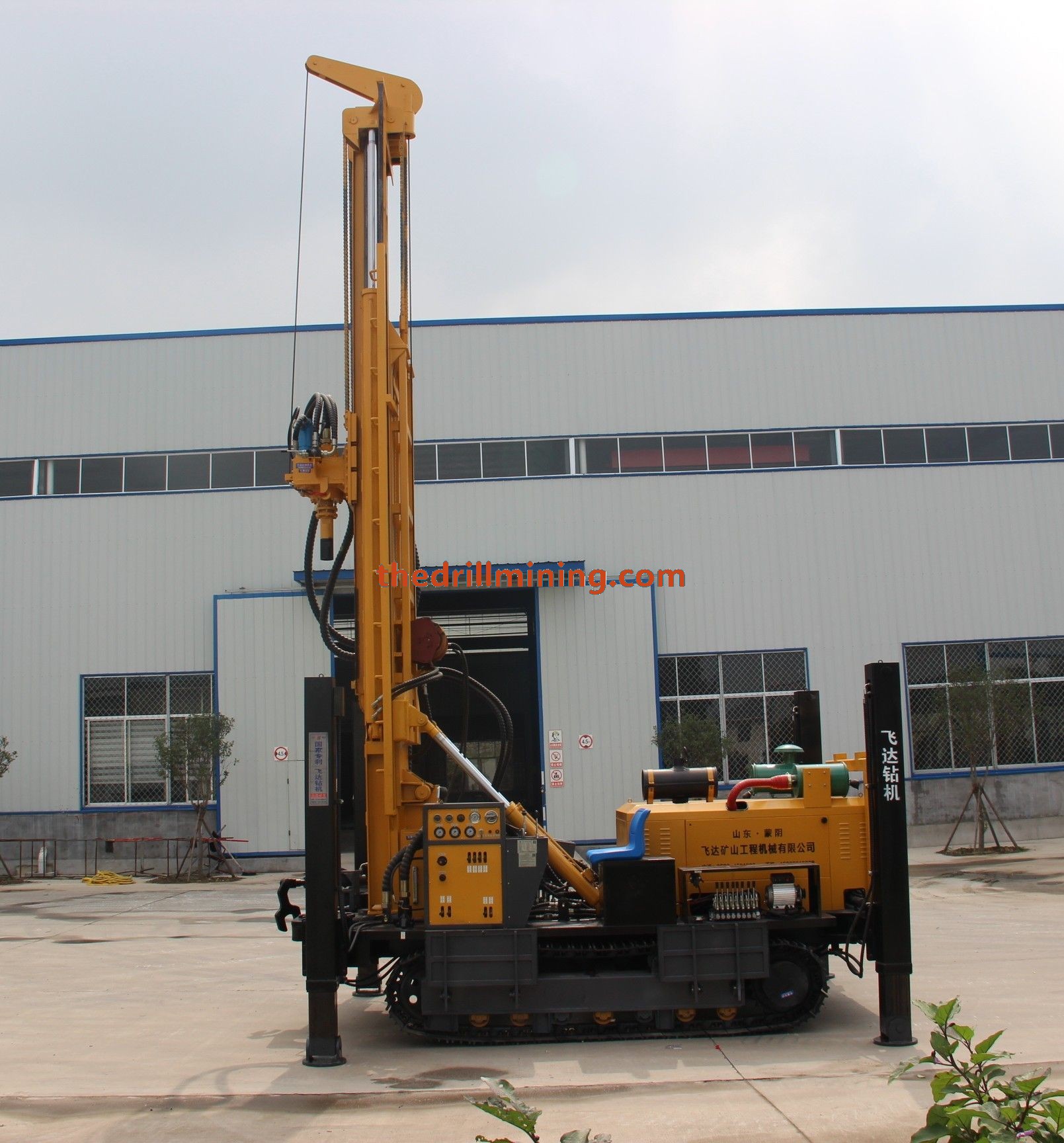

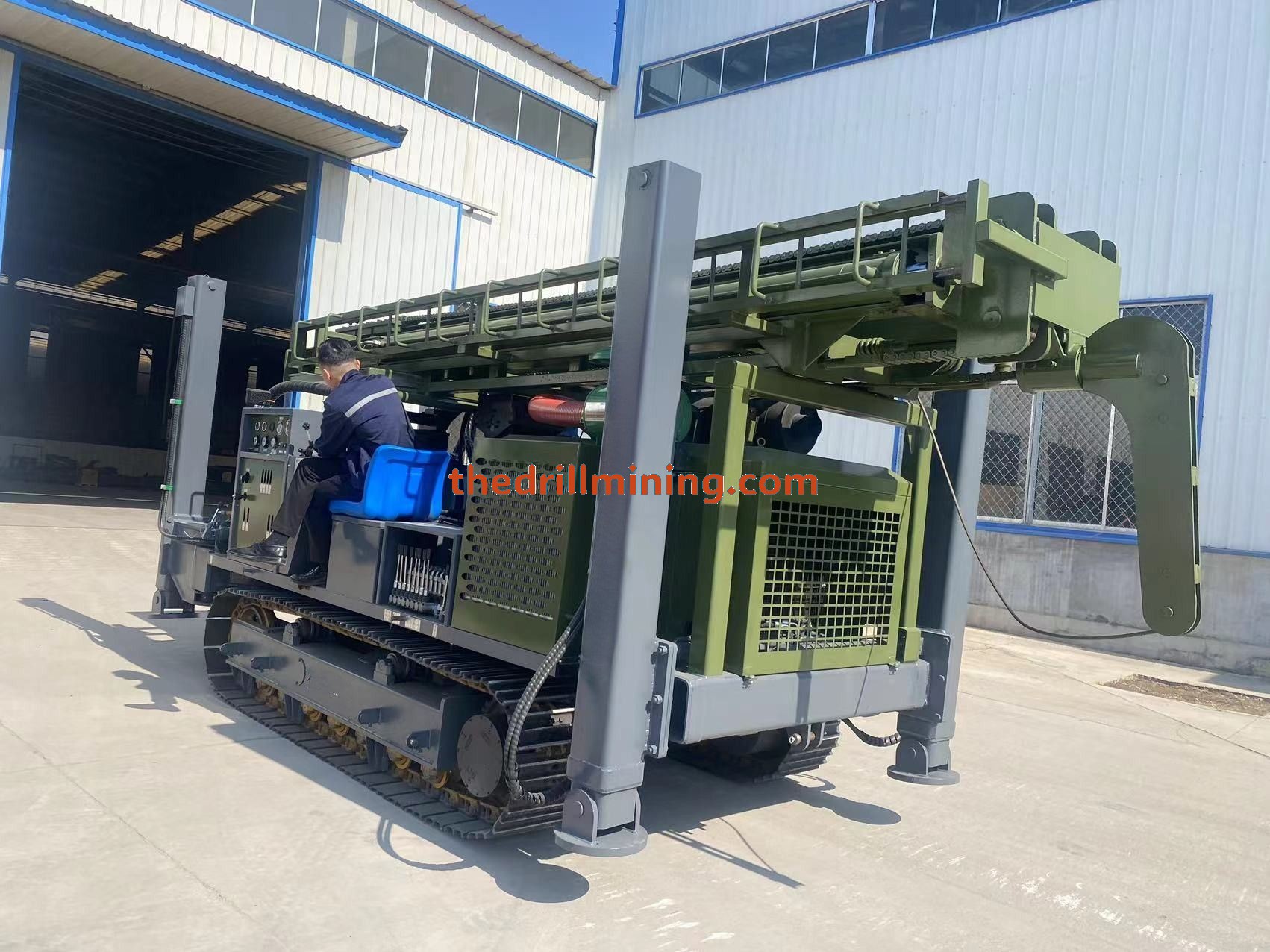

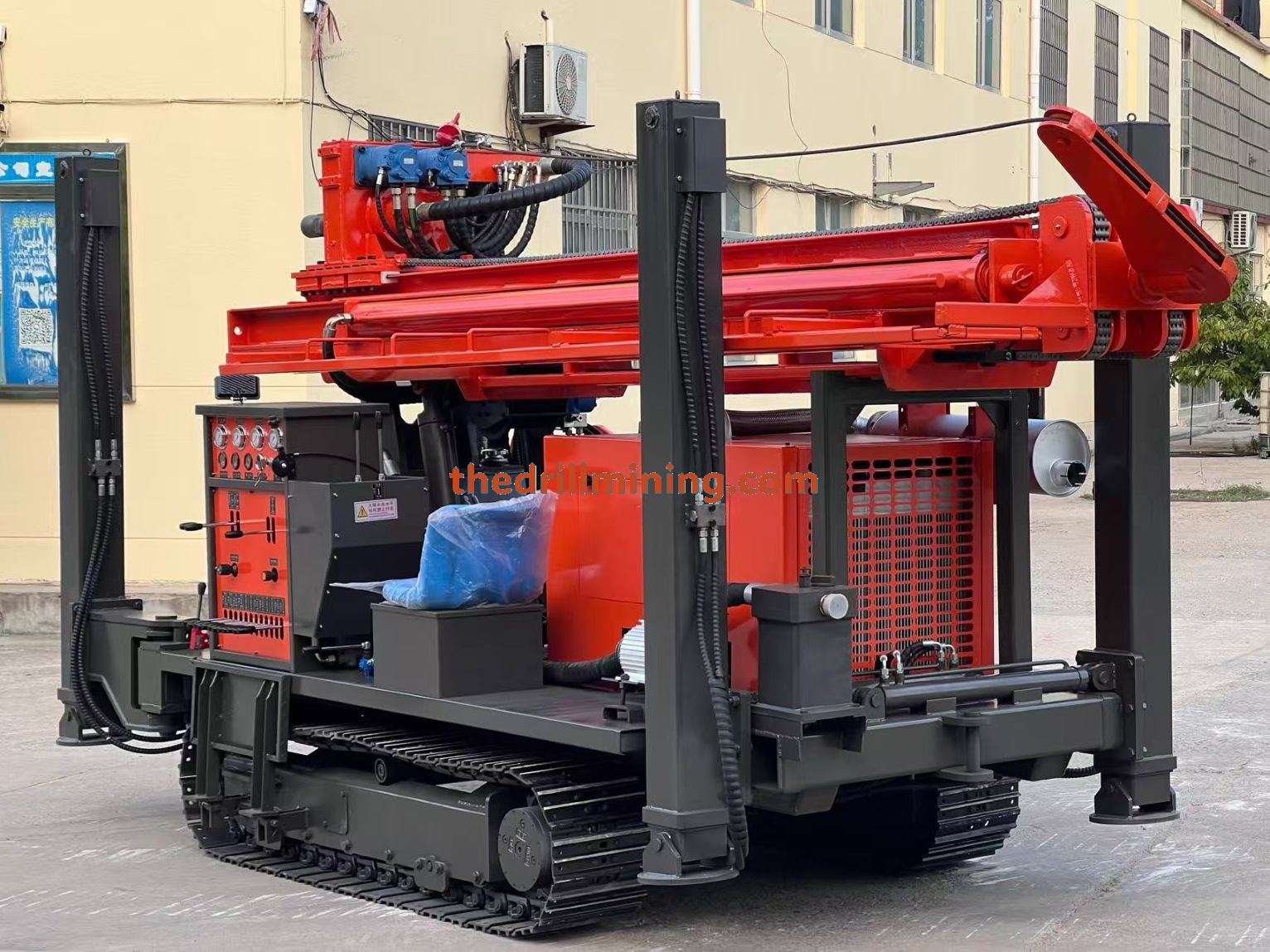

KS450 & KS500 Crawler Deep Water Well Drilling Rigs – High-Torque, Heavy-Duty, and Built for Deep Projects
The KS450 and KS500 crawler water well drilling rigs are engineered for large-scale deep well projects, geothermal installations, and exploration drilling requiring 450 to 500 meters depth. These rigs incorporate premium components and advanced design to deliver unmatched reliability, power, and efficiency in the most demanding conditions.
Key Features:
Performance Highlights:
Versatility:
Standard support for both air compressor and mud pump systems allows seamless adaptation to any geological condition. Compatible with Φ102-Φ114mm drill pipes.
Contact us for KS450/KS500 specifications and quotations.
Parameter | FY450 | FY500 |
Weight (T) | 9.2 | 9.5 |
Drilling Depth (m) | 450 | 500 |
Hole Diameter (mm) | 140-350 | 140-350 |
Drill Pipe Diameter (mm) | Φ89, Φ102 | Φ102, Φ108, Φ114 |
Drill Pipe Length (m) | 1.5,2.0,3.0,6.0 | 1.5,2.0,3.0,6.0 |
Rotary Torque (N·m) | 7000-9500 | 7500-10000 |
Rotary Speed (rpm) | 30-135 | 45-130 |
Lifting Force (T) | 25 | 26 |
Feed Stroke (m) | 6.6 | 6.6 |
Engine Power (kW) | 110 | 118 |
Engine Brand | Yuchai | Yuchai (Cummins opt.) |
Working Air Pressure (MPa) | 1.7-3.5 | 1.7-3.5 |
Air Consumption (m³/min) | 17-36 | 17-42 |
