KS130/KS180/KS260 Crawler & Wheeled Water Well Drilling Rigs | 130-260m Depth
| Parameter | KS300A |
| Weight | 6.8 T |
| Drilling Depth | 300 m |
| Hole Diameter | 140-325 mm |
| Drill Pipe Diameter | Φ76, Φ89 mm |
| Drill Pipe Length | 1.5,2.0,3.0 m |
| Rotary Torque | 5700-7500 N·m |
| Rotary Speed | 40-70 rpm |
| Dimensions | 4100×2000×2260mm |
| Engine Power | 85 |
📩 Send Inquiry
Products Description

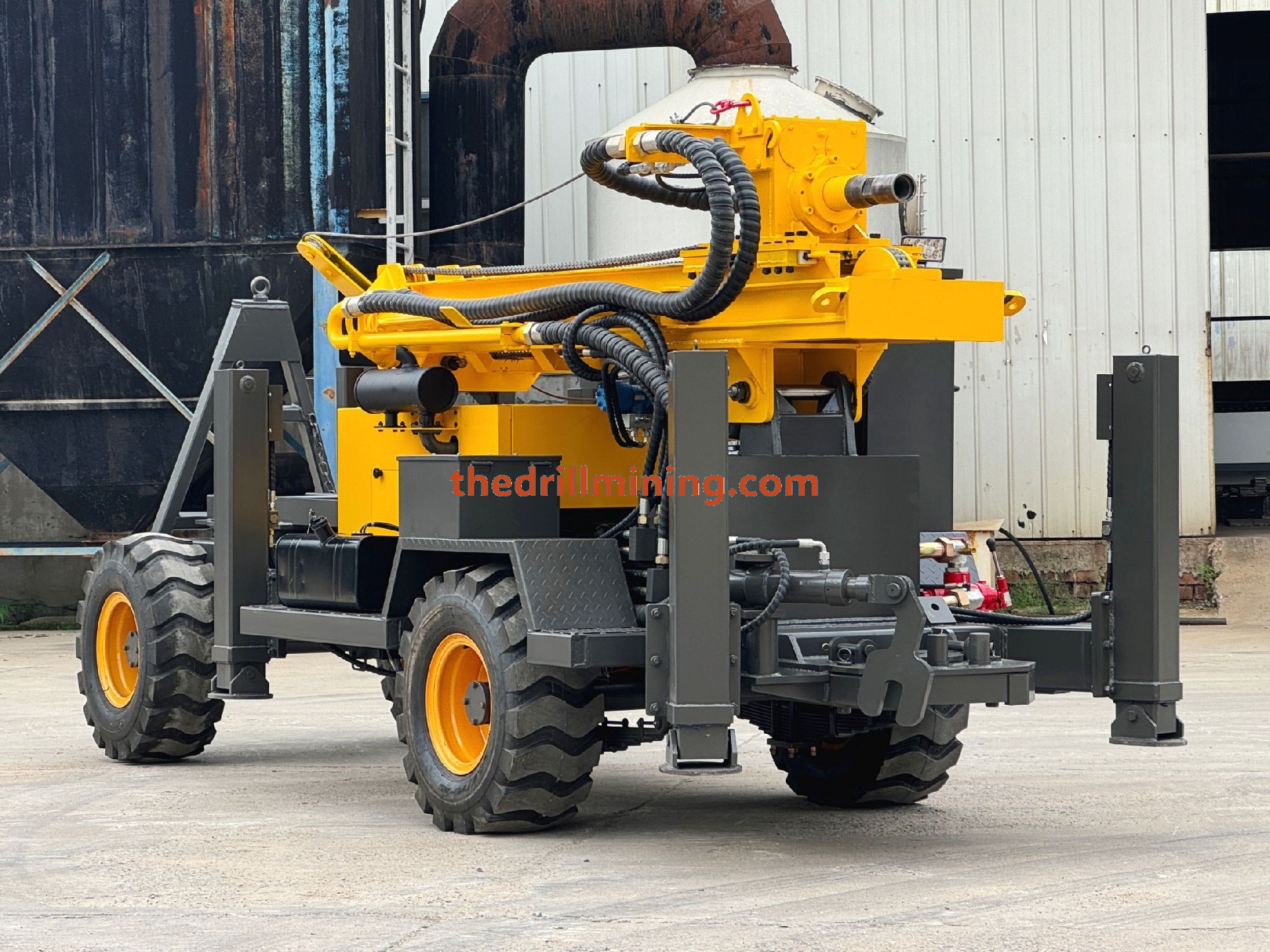

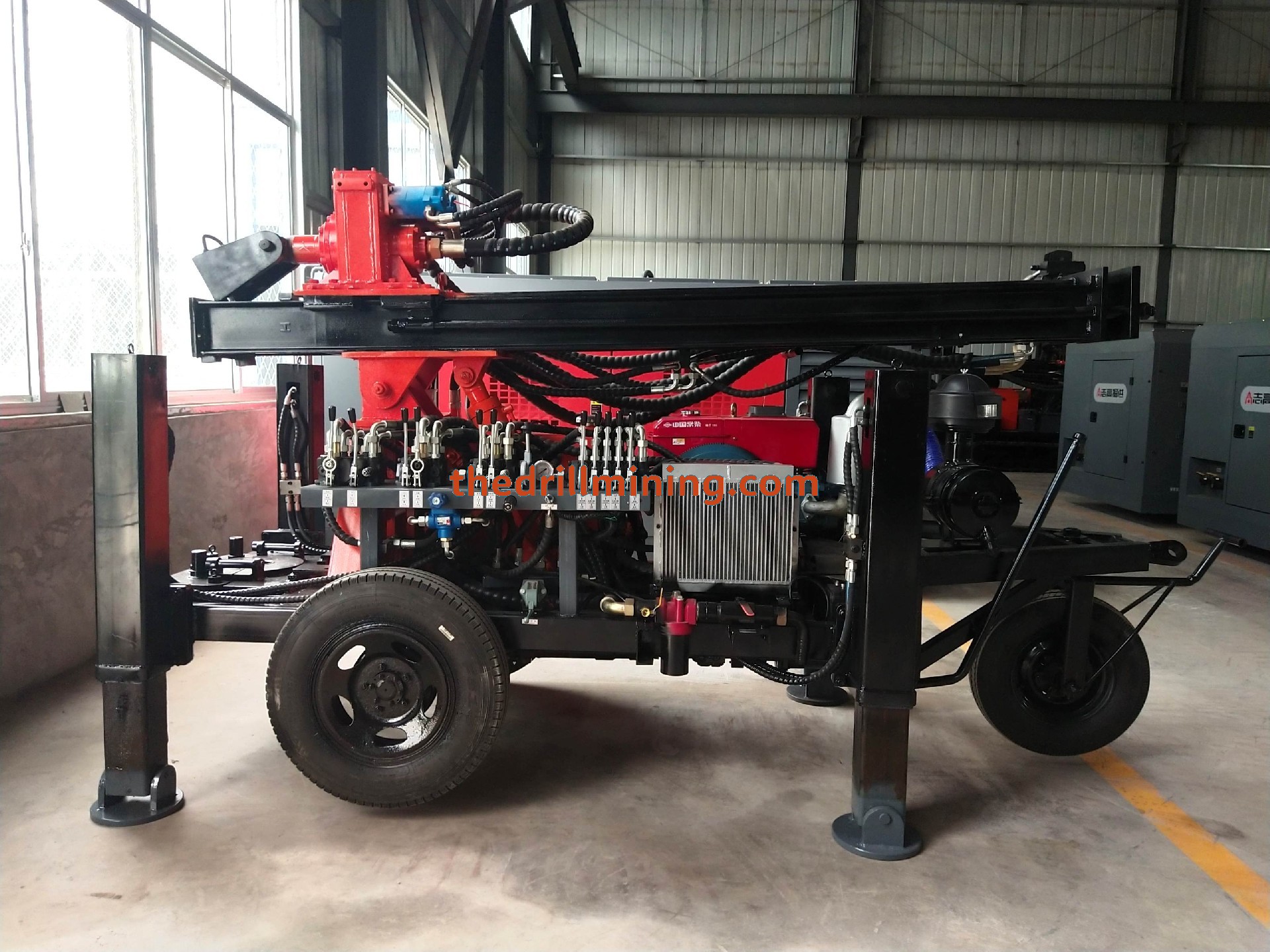

KS Series 130-260m Crawler/Wheeled Water Well Drilling Rigs – Compact, Efficient, and Economical
The KS Series 130-260m crawler water well drilling rigs are designed for small to medium-sized water well projects, farm irrigation, and geotechnical exploration. This series includes three popular models (KS130, KS180, KS260) that share a common design philosophy: standardization, compact structure, fast drilling speed, and low failure rate. They have gained wide market recognition for their outstanding cost-performance ratio.
Key Features:

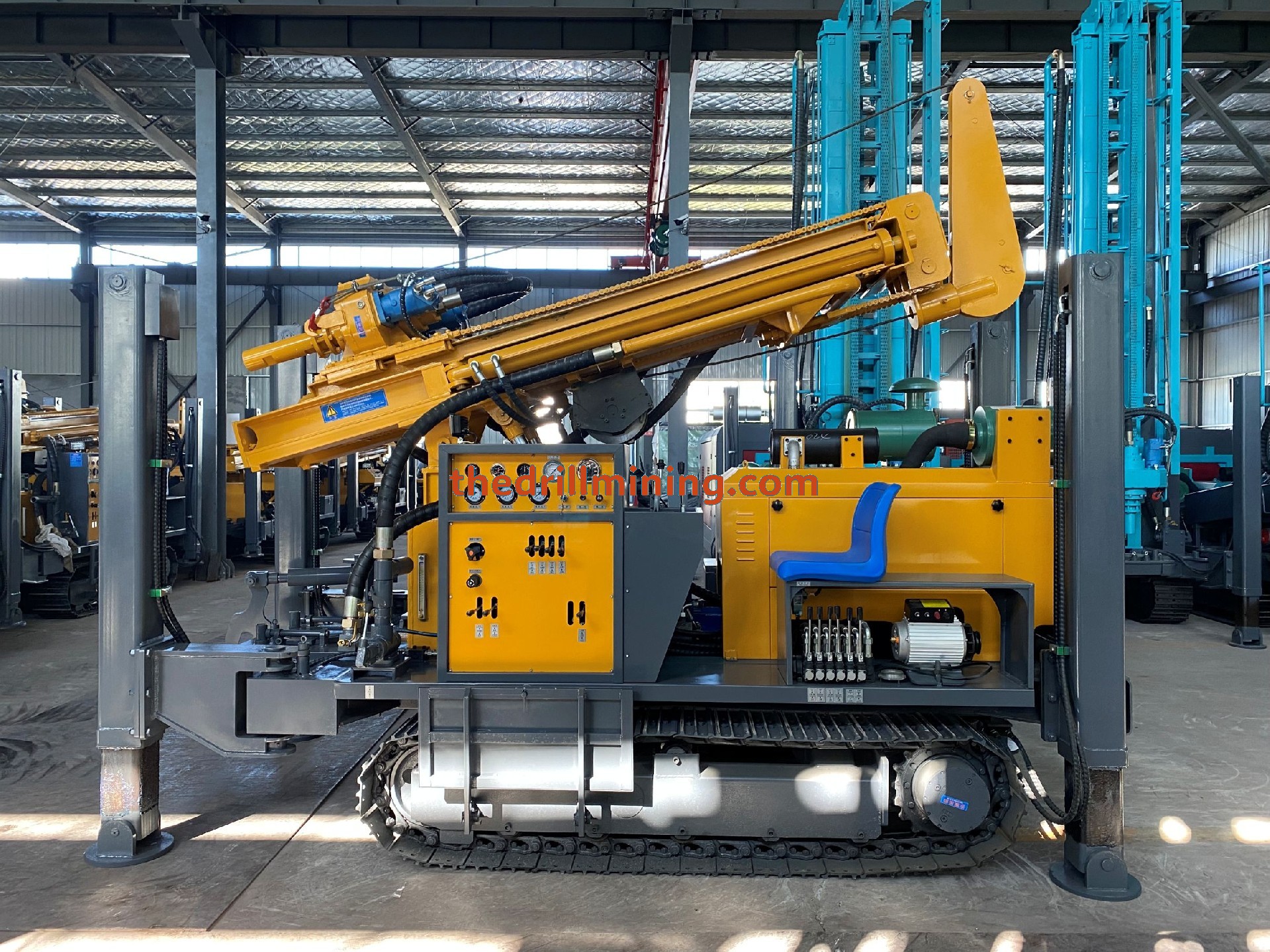

Proven Durability: Built on a professional excavator chassis with wide track plates for excellent stability and minimal damage to paved roads.
Flexible Dual System: All models support optional air compressor (for DTH hammer drilling in rock) and mud pump system (for rotary drilling in soft formations), allowing operators to adapt to varying geological conditions.
Robust Power Options: Powered by reliable diesel engines – Changchai (KS130), Yuchai (KS180), and Quanchai (KS260) – ensuring strong performance and fuel economy.
Enhanced Protection: Thickened protective sleeves on all hydraulic hoses extend service life in harsh environments.
Efficient Drilling: The KS260 features an integrated transmission housing for stronger torque and lower maintenance.
Model Highlights:
KS130 (3 tons): Most compact and economical, ideal for 130m depth, 100-219mm holes.
KS180 (5.2 tons): Features Yuchai engine, 3200-4600N·m torque, Φ140-254mm holes, 12 tons lifting force.
KS260 (5.7 tons): Top model with Quanchai 76kW engine, 4000-5300N·m torque, up to 305mm holes, and 15 tons lifting force.

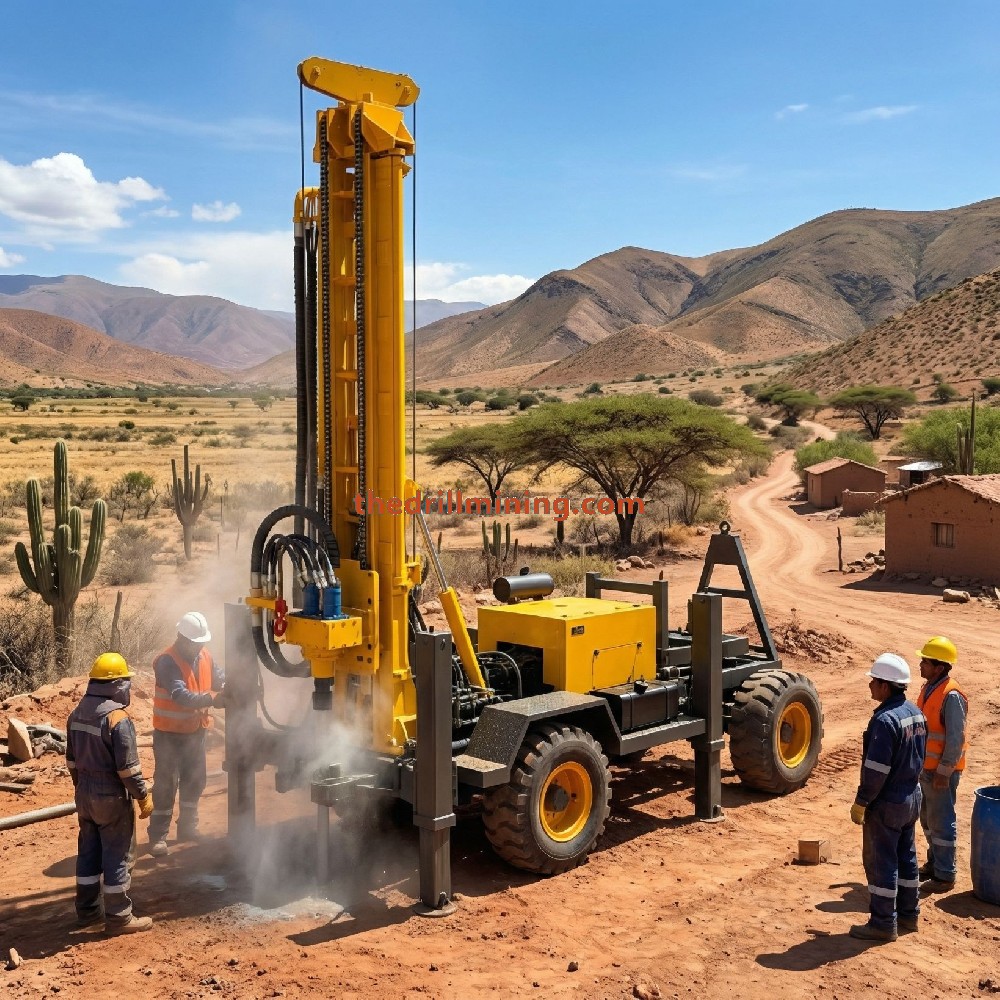

With 10-35m/h penetration efficiency and 30° climbing ability, these rigs deliver reliable performance in diverse terrains. Whether you need a simple farm well or a community water supply, the KS series offers an affordable, durable solution.
Contact us for KS130/KS180/KS260 specifications and quotations.
| Parameter | KS130 | KS180 | KS260 |
|---|---|---|---|
| Weight (T) | 3 | 5.2 | 5.7 |
| Drilling Depth (m) | 130 | 180 | 260 |
| Hole Diameter (mm) | 100-219 | 140-254 | 140-305 |
| Drill Pipe Diameter (mm) | Φ76, Φ89 | Φ76, Φ89 | Φ76, Φ89 |
| Drill Pipe Length (m) | 1.5, 2.0 | 1.5, 2.0, 3.0 | 1.5, 2.0, 3.0 |
| Rotary Torque (N·m) | 2200-3000 | 3200-4600 | 4000-5300 |
| Rotary Speed (rpm) | 40-46 | 45-70 | 45-70 |
| Lifting Force (T) | 6 | 12 | 15 |
| Feed Stroke (m) | 2.3 | 3.3 | 3.3 |
| Engine Power (kW) | 23 | 60 | 76 |
| Engine Brand | Changchai | Yuchai | Quanchai |
| Working Air Pressure (MPa) | 1.45-2.5 | 1.7-2.5 | 1.7-2.5 |
| Air Consumption (m³/min) | 15-29 | 17-31 | 17-31 |
| Travel Speed (km/h) | 3 | 2.5 | 2.5 |
| Climbing Angle | 30° | 30° | 30° |
| Dimensions (L×W×H) (mm) | 3850×1560×2050 | 4000×1630×2250 | 3900×1750×2250 |
