Drilling towe	Drill tower height：12M
Mud pump	BW1200/10
Main hoist	Single rope pull up：8T
Alternator	Rated Power：30KW
Transmission case	Input torque：1000NM
Diesel engine	Power:353KW

📩 Send Inquiry

Products Description

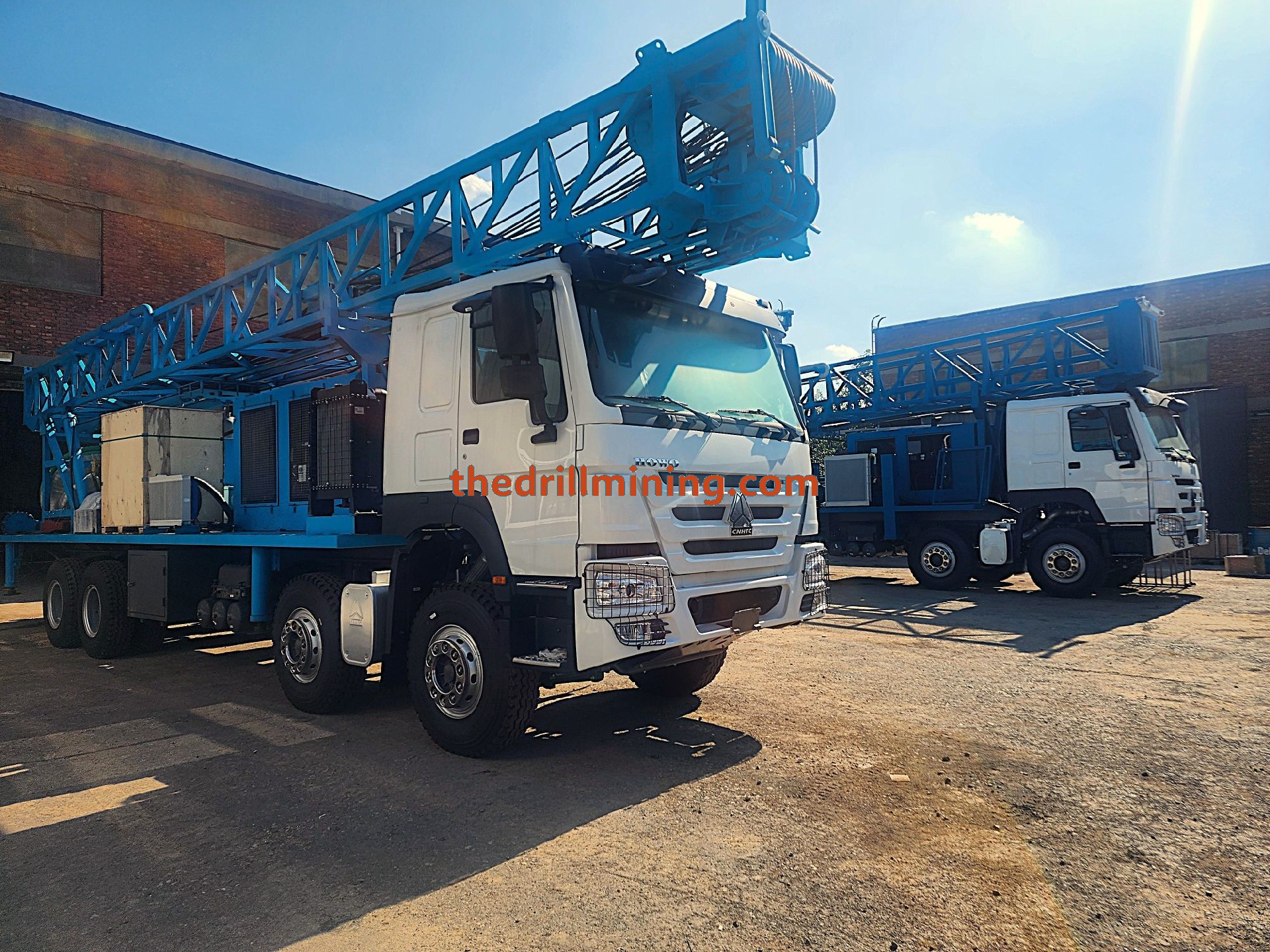

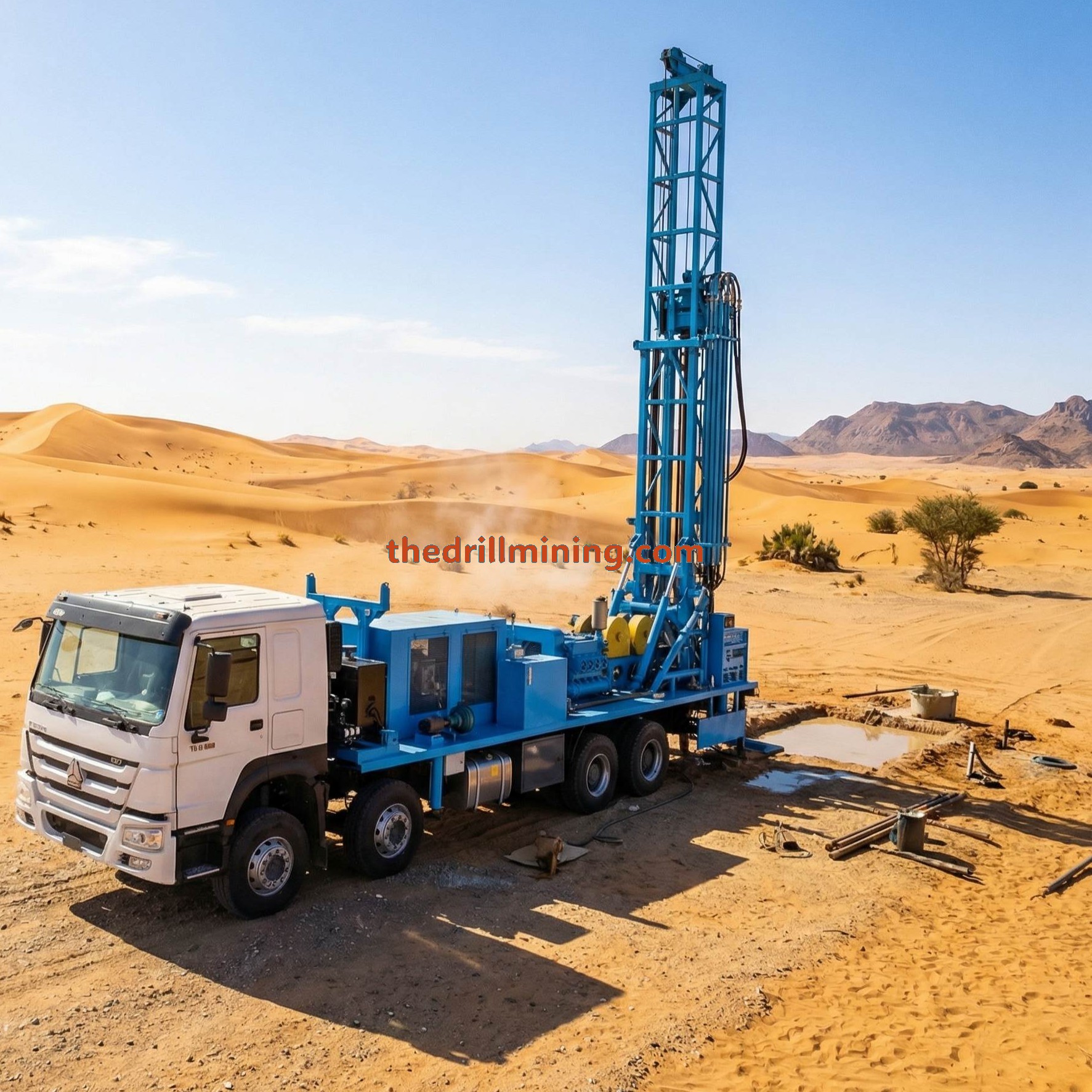

Multi-functional Truck Mounted Deep Well Drilling Rig – Rotary Table or Mechanical Power Head, 500-1500m Depth

This multi-functional truck mounted deep well drilling rig is engineered for professional drilling contractors requiring versatility, deep capacity, and large diameter capability. Suitable for water wells, oil and gas exploration, geothermal drilling, and foundation construction, it delivers 500-1500m drilling depth with 300-2000mm hole diameter across diverse geological conditions.

Comparison of Power Head Types

Category	Rotary Table	Mechanical Power Head
Advantages	Simple structure and low cost; Easy maintenance; High mechanical transmission efficiency; Low requirements for operators; Strong environmental adaptability	Power source located at the top of the tower for optimal borehole verticality; Easy to operate with quick rod changing, saving manpower; High mechanical transmission efficiency; Simple and reliable structure; Large torque; Unaffected by ambient temperature; High operational fault tolerance
Disadvantages	Relatively time-consuming and laborious to change drill pipes	Higher cost (compared with the rotary table)

Strong power and reliable chassis

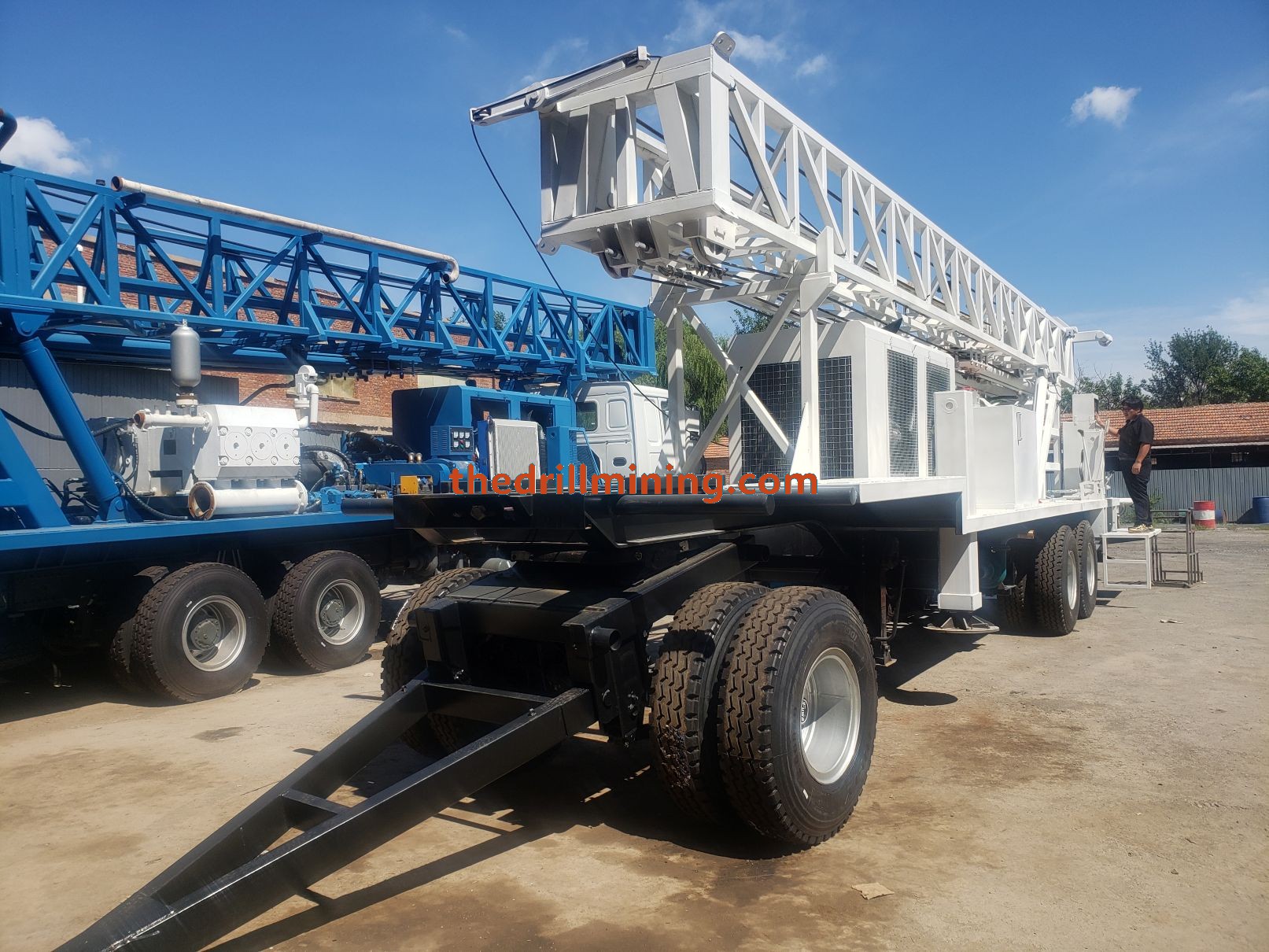

Powered by your choice of Cummins or Weichai diesel engines, ensuring reliable performance in remote locations. The rig is mounted on premium Chinese truck chassis including Sinotruk HOWO, Dongfeng, Shacman, Beiben, FAW, with drive options 6x4, 8x4, 8x6. Trailer mounting also available upon request.

Supports multiple drilling techniques to optimize performance in various formations:

-Mud positive circulation for soft to medium formations

-Air DTH hammer for hard rock and fast penetration

-Air-lift reverse circulation for large diameter and deep holes

-Hydraulic DTH hammer for specialized applications

Enhance productivity with optional equipment:

-Hydraulic knuckle boom crane for pipe handling

-Automatic rod handling system

-Welder and generator for remote site self-sufficiency

Built for demanding deep drilling projects, this rig combines proven Chinese engineering with extensive customization to meet your specific requirements at competitive factory pricing.
