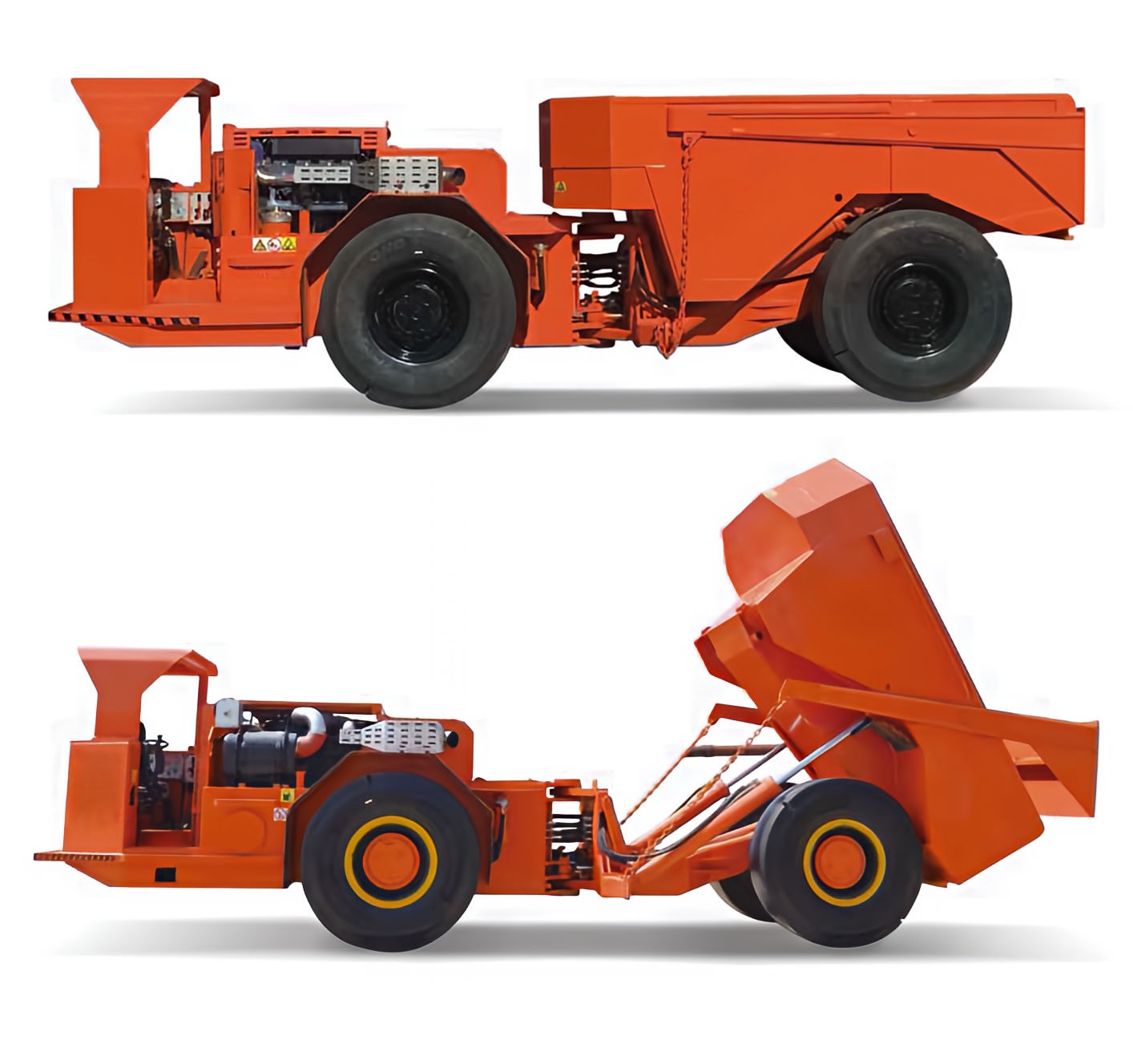

TK-16 Underground Mining Truck

TK-16 Underground Mining Truck

The TK-16 series underground ore transport vehicle is a commonly used transportation equipment in large and medium-sized non-coal mines. It is often used in conjunction with 2m3 and 3m3 scrapers to achieve higher ore extraction efficiency.The power system uses an imported MTU water-cooled engine;The
Send Inquiry

Products Description

The TK-16 series underground ore transport vehicle is a commonly used transportation equipment in large and medium-sized non-coal mines. It is often used in conjunction with 2m3 and 3m3 scrapers to achieve higher ore extraction efficiency.

The power system uses an imported MTU water-cooled engine;

The travel system uses a torque converter and gearbox produced by DANA of the United States, and a drive axle of a well-known imported brand;

The braking method is spring braking and hydraulic release;

The hydraulic components are products of well-known domestic and foreign brands.

Compartment volume

8m3

Dimensions Length/Width/Height

7500×2260×2340mm (Type A)
        7900×2260×2340mm (Type B)

Rated load

16000kg
        17300kg
        17500kg

Maximum unloading height

4100mm

Loading height

2180mm

Driving speed

I gear 5km/h II gear 10km/h III gear 15km/h

Maximum climbing ability

≤ 25%

Minimum ground clearance

310mm

Minimum turning radius

6300mm (outside)

Tyre model

17.50-25

Main circuit rated voltage

24V

Braking system

Integrates working brake and parking brake, adopts spring brake,   hydraulic release brake
