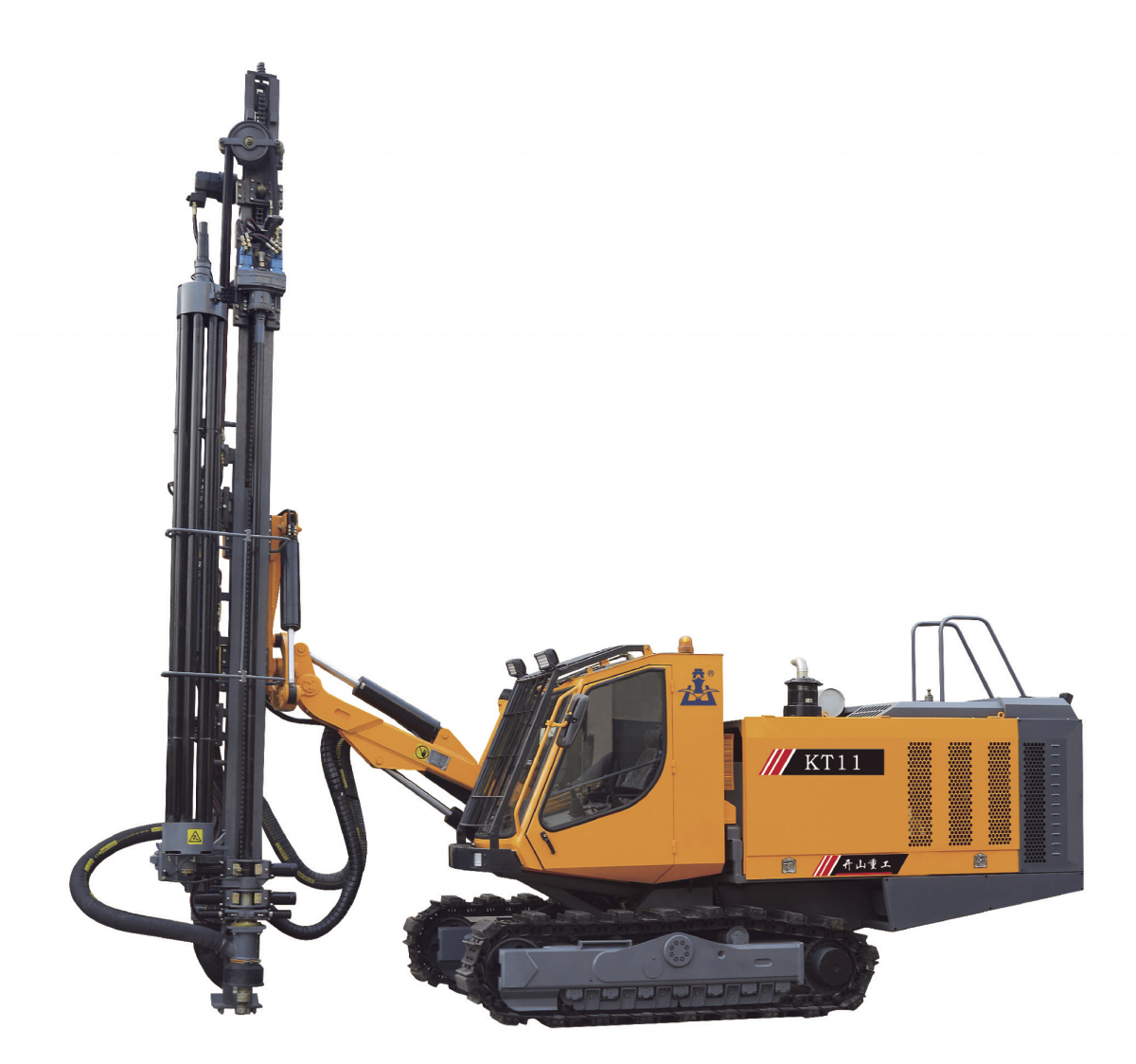

KT11 Integrated Down The Hole Drill Rig For Open Use

KT11 Integrated Down The Hole Drill Rig For Open Use

The KT11 integrated down the hole dril rig for open use can driling vertical, incined and horizontal holes, mainly used for open-pit mine.stonework blast holes and pre-spliting holes. it is driven by the Cummins diesel engine and the two-terminal output can drive the screwcompression svstem and hvdr
Send Inquiry
Add To Cart
Download

Products Description

The KT11 integrated down the hole dril rig for open use can driling vertical, incined and horizontal holes, mainly used for open-pit mine.stonework blast holes and pre-spliting holes. it is driven by the Cummins diesel engine and the two-terminal output can drive the screwcompression svstem and hvdraulic transmission svstem, The drll rig is equipped with the automatic rod handing system, driling rodfoating slide module, drll pipe lubrication module, dril pipe sticking prevention system, hydraulic dry dust collection system, air condition-ing cab, optional dilling angle and depth indication funcion, etc. The drll rig is characterized by excellent integrity, high automationefficient driling, environment-friendliness, energy conservation, simple operation, fexibility and travelling safety, etc

Transport  dimensions(L×W×H)

9100*2600*3300/3600mm

Weight

17000Kg

Rock  hardness

f=6-20

Drilling  diameter

90-140mm

Ground  clearance

420mm

Leveling  angle of track

10°up,10°down

Travelling  speed

0-3Km/h

Climbing  capacity

25°

Traction

120KN

Rotary  torque（Max)

2800N·m（Max)

Rotation  speed

0-120rpm

Lifting  angle of drill boom

Up47°,down20°

Swing  angle of drill boom

Right50°,left21°

Swing  angle of carriage

Right95°,left35°

Tilt  angle of beam

114°

Compensation  stroke

1353mm

Feed  stroke

4490mm

Maximum  propelling force

40KN

Method  of propulsion

Rollerchain

Depth  of economical drilling

32m

Number  of rods

7+1

Specifications  of drilling rod

Φ64/Φ76x4000mm

DTH  hammer

3＂、4＂

Engine

Cummins-QSL8.9-C325-30/CumminsQSL8.9-C325-30

Output  power

242KW/2200rpm

Screw  air compressor

Zhejiang  Kaishan

Air  capacity

18m3/min

Air  pressure

20Bar

Traveling  controlsystem

Hydraulic  pilot

Drilling  control system

Hydraulic  pilot

Anti-Jamming

Automatic  electro-hydraulic anti-jamming

Voltage

24V,DC

Safecab

Meet  the requirements of FOPS & ROPS

Indoornoise

Below85dB(A)

Seat

Adjustable

Air-conditioning

Standard  temperature

Entertainment

Radio+Mp3

Air-conditioning

Standard  temperature

Entertainment

Radio  +Mp3

Entertainment

Radio
